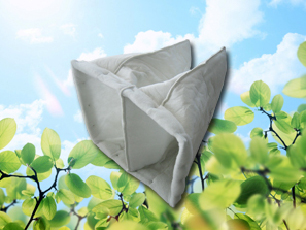

Non-frame Pocket Filter

Applications:coarse and fine particle filtration
Type:multi-pocket filter
Frame:5-6 cm media fringe
Filter media:progressively structured synthetic fiber
Gasket:EVA or none for plastic frame
EN 779 Class:G3-F8
Average arrestance:80%-99%(ASHRAE 52.1-1992)
MERV:MERV 5-14(ASHRAE 52.2-1999)
DIN 53438 Flammability:F1
UL 900 Standard:CLASS 2
Final pressure drop:(recommender) 250Pa(G3-F5)-400Pa(F6-F8)
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:100℃
Max. relative humidity:100%



Type

Class

Dust Spot
Efficiency

Dimensions

Filtering
surface

(m2)

Rated
air flow (m3/h)

Initial pressure
drop (Pa)

Length
(mm)

Height
(mm)

Depth
(mm)

DS-35,6P

G3

≤20%

592

592

600

4.68

3400

25

DS-45,6P

G4

30-40%

592

592

600

4.68

4250

45

DS-55,6P

F5

40-60%

592

592

600

4.68

4250

55

DS-65,8P

F6

60-80%

592

592

600

6.20

3400

60

DS-85,8P

F7

80-90%

592

592

600

6.20

3400

90

DS-95,8P

F8/9

90-95%

592

592

600

6.20

3400

120




Other Sizes: On request
