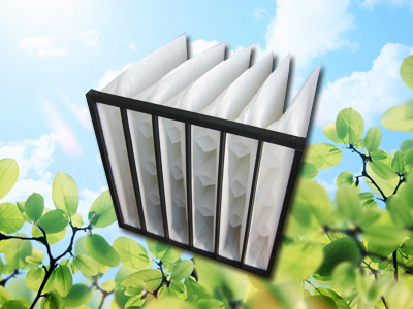

Aerodynamic Self-supported Pocket Filter
-
Aerodynamic, Tubular Pocket Spacers and Wedge-Shaped Filter Design channel the air for particulate loading throughout the depth of the pocket and minimum air flow resistance.
Self-Supporting Pockets stay rigid in turbulent airstreams and during turbine shutdown. -
Applications:coarse and fine particle filtration; gas turbine system filtration
Type:multi-pocket filter
Frame:galvanized steel, aluminium or plastic
Filter media:progressively structured synthetic fiber
Gasket:EVA or none for plastic frame
EN 779 Class:G3－F7
Average arrestance:80%－99%（ASHRAE 52.1-1992）
MERV:MERV 5－13（ASHRAE 52.2-1999）
DIN 53438 Flammability:F1
UL 900 Standard:CLASS 2
Final pressure drop:(recommender) 350Pa(G3-F5)－500Pa(F6-F7)
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:100℃
Max. relative humidity:100%
|
Type |
Class |
Dust Spot |
Dimensions |
Filtering |
Rated |
Initial pressure |
||
|
Length |
Height |
Depth |
||||||
|
SPT-30,6P |
G3 |
≤20% |
592 |
592 |
600 |
4.68 |
4250 |
25 |
|
SPT-40,6P |
G4 |
30-40% |
592 |
592 |
600 |
4.68 |
4250 |
35 |
|
SPT-50,6P |
F5 |
40-60% |
592 |
592 |
600 |
4.68 |
4250 |
45 |
|
SPT-60,8P |
F6 |
60-80% |
592 |
592 |
600 |
6.20 |
4250 |
65 |
|
SPT-80,8P |
F7 |
80-90% |
592 |
592 |
600 |
6.20 |
4250 |
95 |
Other Sizes: On request
Curve
